Board and batten is one of our favorite, easy DIY projects. It’s beginner-friendly and creates a big visual impact in any room, entryway, or hallway. This is the third home where we’ve installed this style of wainscoting, and in this guide we share our tricks for making the project faster, easier, and far less expensive than traditional board and batten installations.

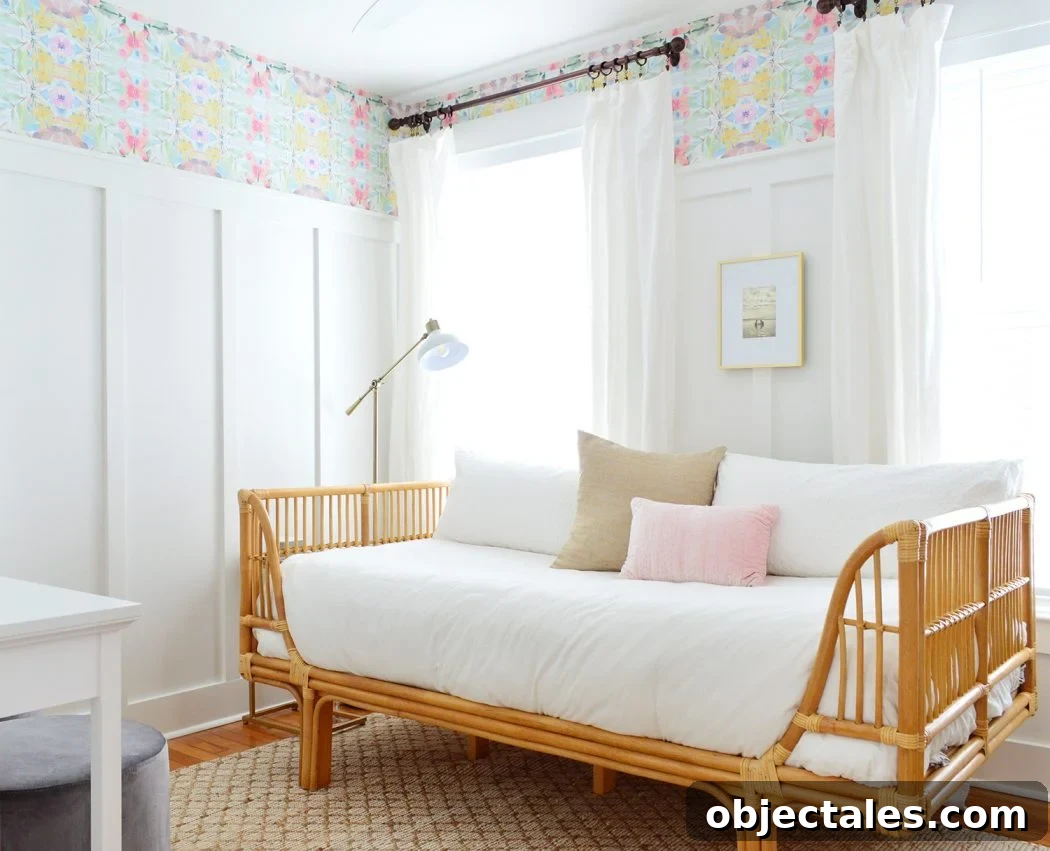

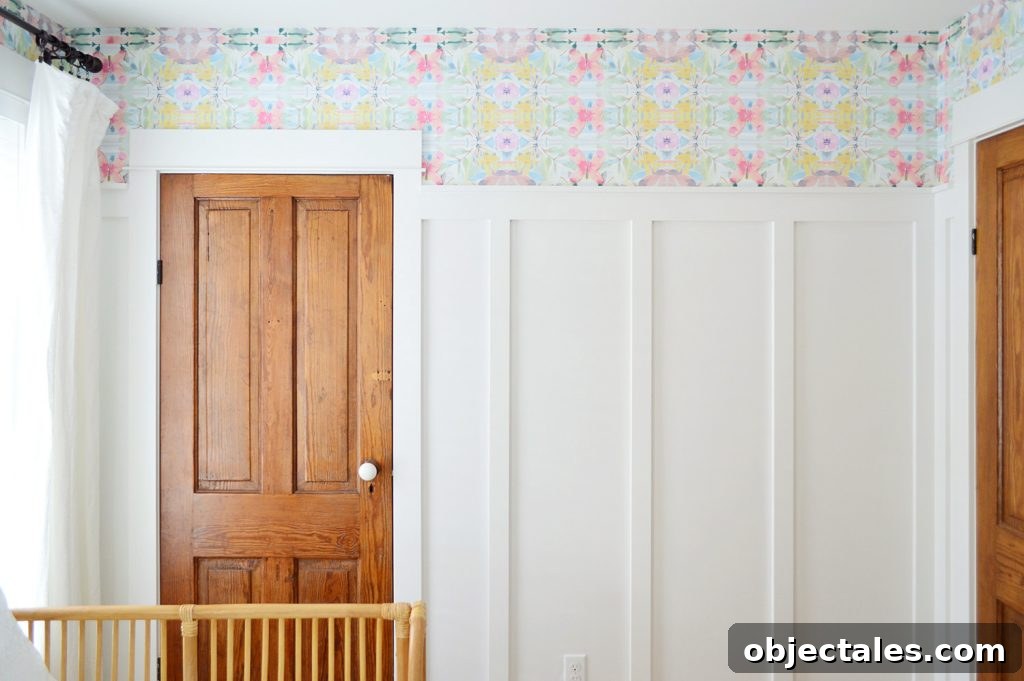

For this beach house installation we ran the board and batten higher on the wall and then applied peel-and-stick wallpaper above it. The contrast of classic molding and bold wallpaper created the playful yet polished look we wanted for this guest bedroom.
What is Board & Batten?
Board and batten began as an exterior siding technique and now commonly serves as interior paneling. Thin strips of molding, called battens, are placed over the seams between wider flat boards. The treatment can run floor-to-ceiling or partway up a wall, with battens arranged vertically, horizontally, or in boxed patterns. Its versatility allows it to read traditional and refined or casual and cottage-y depending on materials, spacing, and finish.
How Much Does Board & Batten Cost?
Costs vary widely depending on room size, materials, and detail. Our projects have ranged from about $50 to nearly $650. A very budget-friendly installation using reused baseboards and thin lattice battens can be completed for under $100. A more elaborate floor-to-ceiling boxed installation with extra molding can push into the several-hundred-dollar range. The example in this guide cost roughly $195 for a mid-sized guest bedroom. You can control costs by choosing simpler battens, reusing trim, and limiting the height of the treatment.
Whether you want a subtle tone-on-tone treatment or a bright white trim effect, board and batten can be adapted to many budgets and aesthetics.
Tools & Materials
Our cost-saving secret: we often skip installing full “boards” behind the battens. Instead, battens are applied directly to drywall and painted to match, which saves time, materials, and expense while delivering the same visual impact.
- 1″ x 4″ x 8′ primed boards for the top rail
- 1″ x 3″ x 8′ primed boards for vertical battens
- 1″ x 2″ x 8′ primed boards for the top lip/ledge
- Primer and paint (we used a semi-gloss trim paint in Pure White)
- Spackle or wood filler and a spackle knife
- Caulk and a caulk gun
- Nail gun (or brad nailer) and appropriate nails
- Miter saw (or hand saw) for accurate cuts
- Long level (48″) and tape measure
- Stud finder
- High-grit sanding block and painter’s tape
- Pencil and small wood spacer for consistent gaps
From layout to final coat, this project typically takes about six hours of active work, spread over two days to allow for drying of spackle, caulk, primer, and paint.
Step 1: Plan Spacing

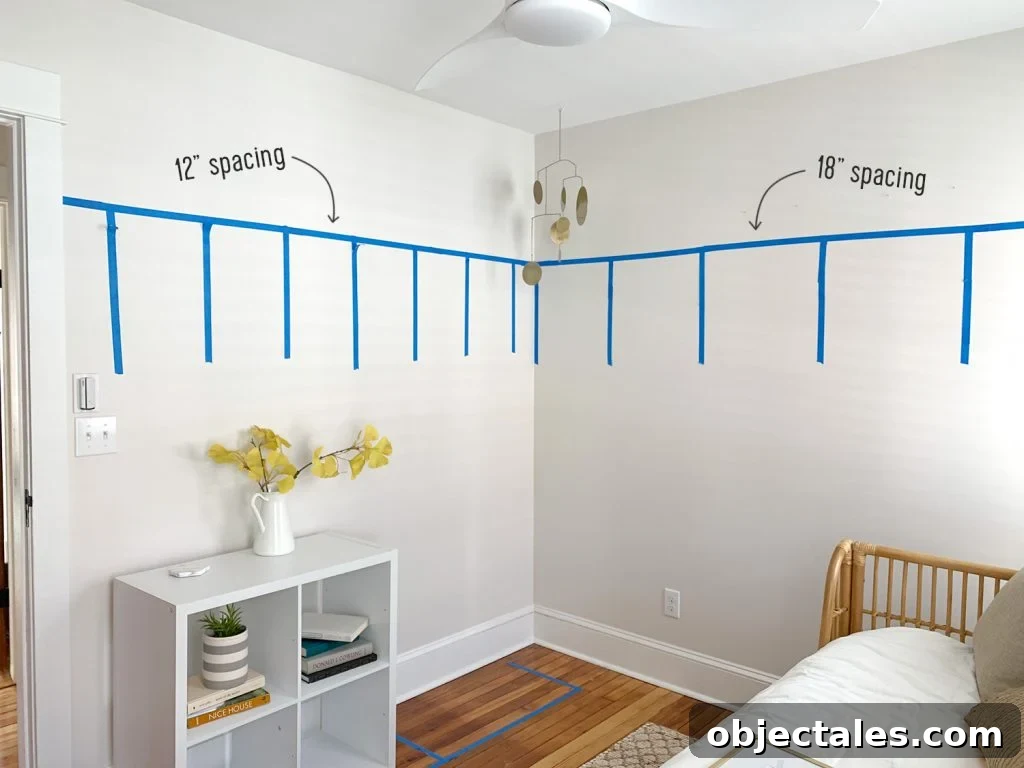

Decide the height of your top rail and the spacing for vertical battens before cutting any boards. Use painter’s tape to mock up potential layouts on the wall so you can visualize spacing, alignment with doors and windows, and how the treatment sits with ceiling height. In our room we settled on 18″ center-to-center batten spacing and placed the top rail about 20″ down from the ceiling to minimize wallpaper usage and keep the finished look proportionate to doors and windows.
Step 2: Mark Studs

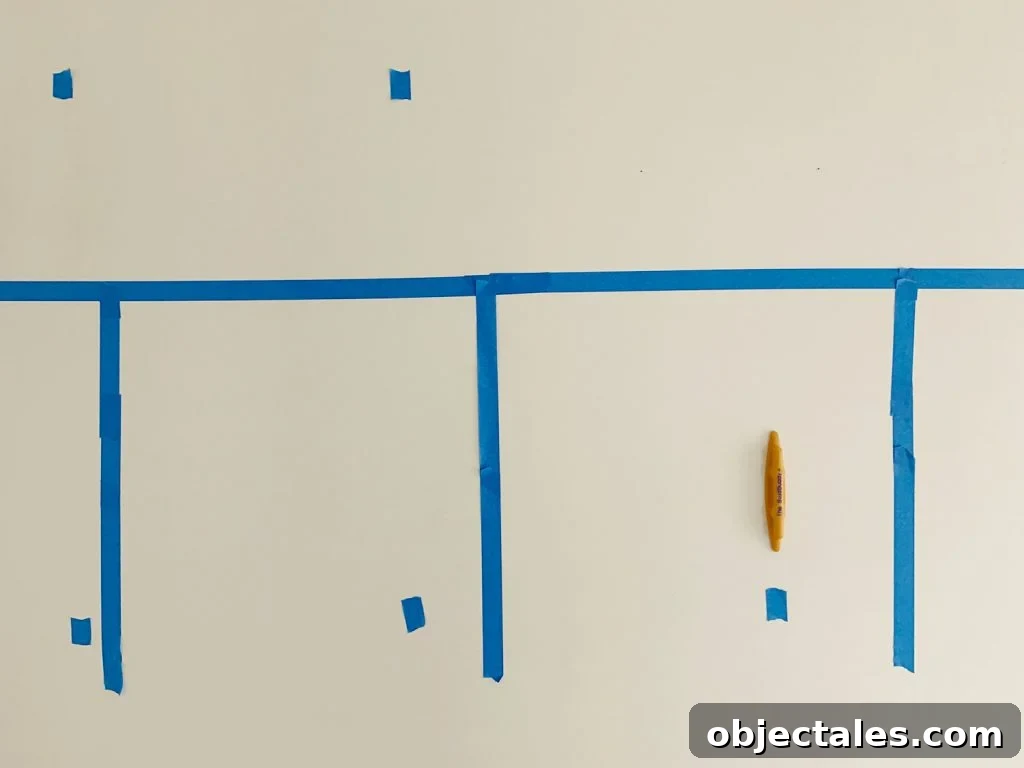

Locate and mark studs around the room so your top rail and some of the battens can be fastened into solid framing. A magnetic stud finder or standard electronic stud finder works well; mark each stud high and low so you can quickly align and secure your boards while installing.
Nailing into studs improves the strength of the installation and helps prevent popping nails later.
Step 3: Prep Baseboards

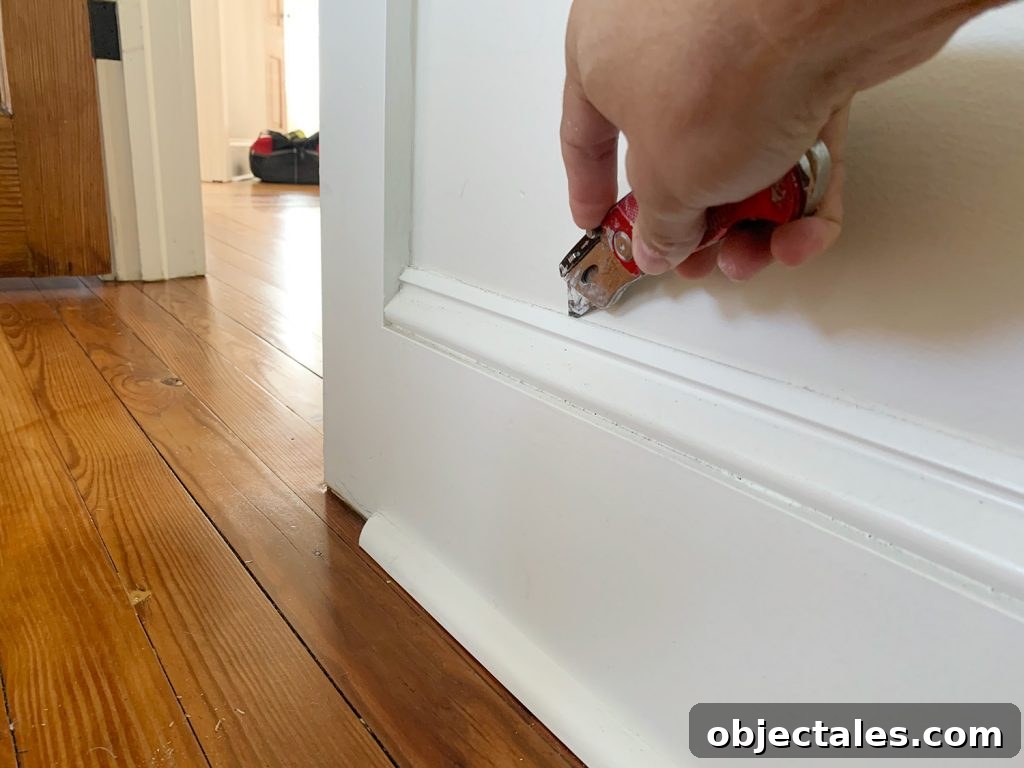

Your existing baseboard can act as the bottom rail. If it has a decorative cap that interferes with battens, score the top edge with a utility knife to cut the paint and caulk bond, then gently pry off the trim piece. Clean and patch any remaining caulk or nail holes so the battens sit flush against the wall.
If your baseboard is too thin, consider replacing it with a 1×6 to provide a more substantial bottom rail and better visual balance with thicker battens.
Step 4: Install Top Rail

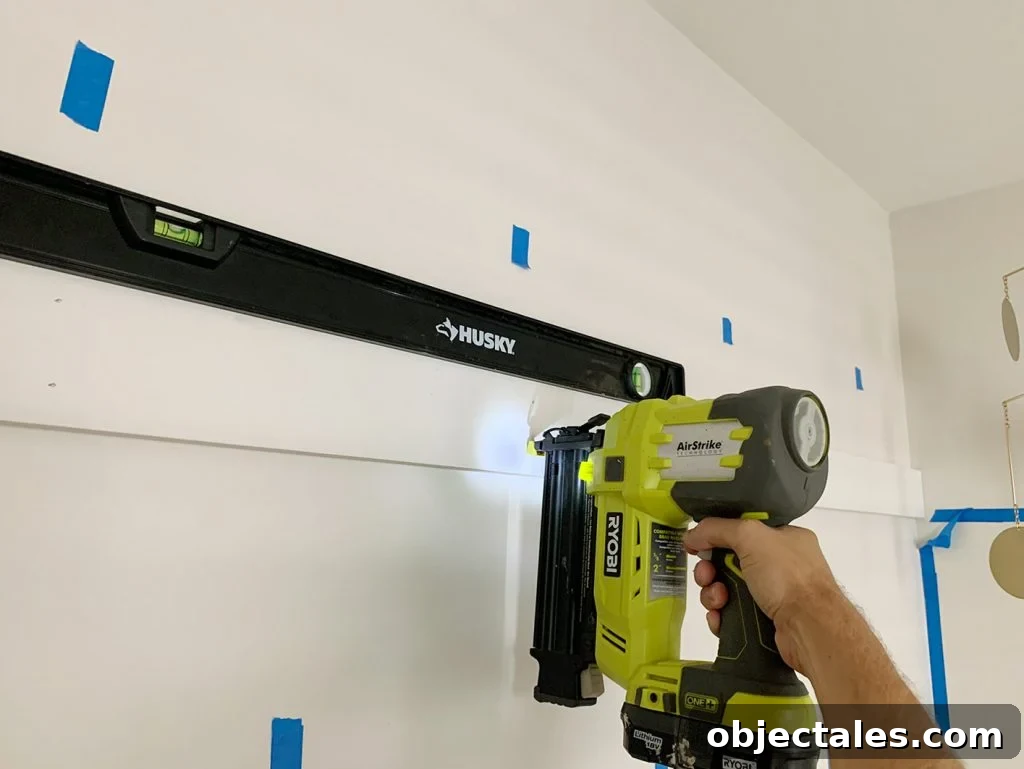

Attach the top rail (1×4) around the room at the predetermined height. Use your studs as anchor points and keep a long level handy to ensure the rail looks level to the eye. Older houses often have slightly bowed ceilings or floors; matching the rail to the visible ceiling plane usually yields the most visually pleasing result.
Simple butt joints in corners are fine for most installations. Longer walls can be spanned with two pieces joined with a slight angled cut to disguise the seam if desired.
Step 5: Install Vertical Battens

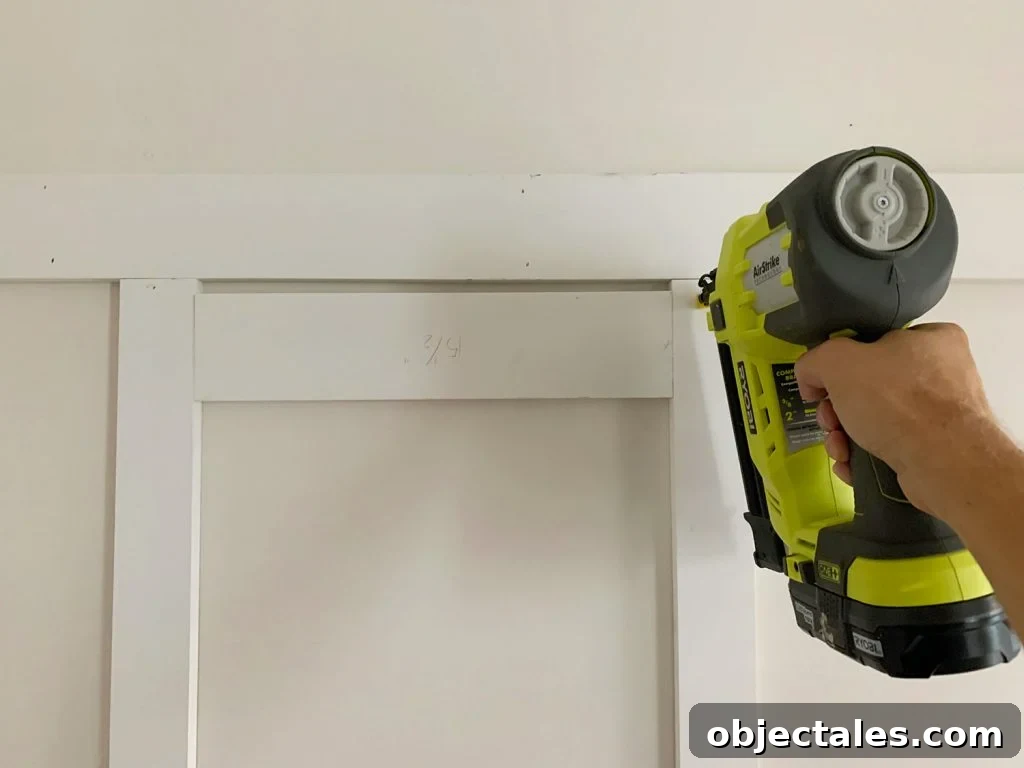

Measure each vertical batten individually if your walls aren’t perfectly straight. Cut and install each batten at the planned spacing, using a small scrap spacer to keep center-to-center gaps consistent. Secure battens with a few nails up and down each piece.
Some installers add adhesive or a bead of caulk behind battens when studs can’t be hit, but we avoid extra glue to keep future removal less damaging. Battens generally hold well with nails plus the caulked and painted edges. Don’t hang heavy items on battens unless they are anchored to studs.
Step 6: Mind the Corners
Corners can be tricky if spacing leaves tiny cut-off battens. We aim to center one batten in the room and work out to the corners, then adjust spacing so two “full” battens visually meet at corners rather than one overlapping the other. Often that means setting corner battens just slightly off the actual corner so both read as full sized when viewed head-on.
Step 7: Add Top Ledge

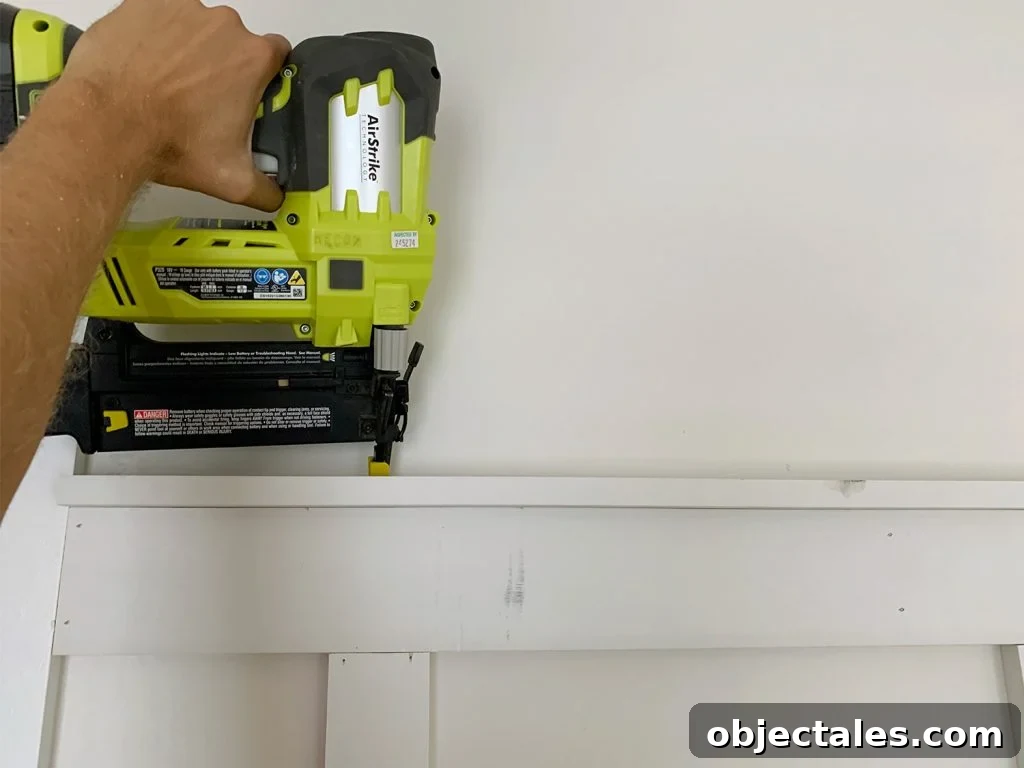

Adding a 1×2 top ledge gives the treatment a finished, substantial look and creates a shallow shelf for leaning artwork or lightweight decor. Nail the ledge in place along the top rail; if you plan to place heavier objects on it, consider using screws for extra support.
Step 8: Spackle & Sand Nail Holes

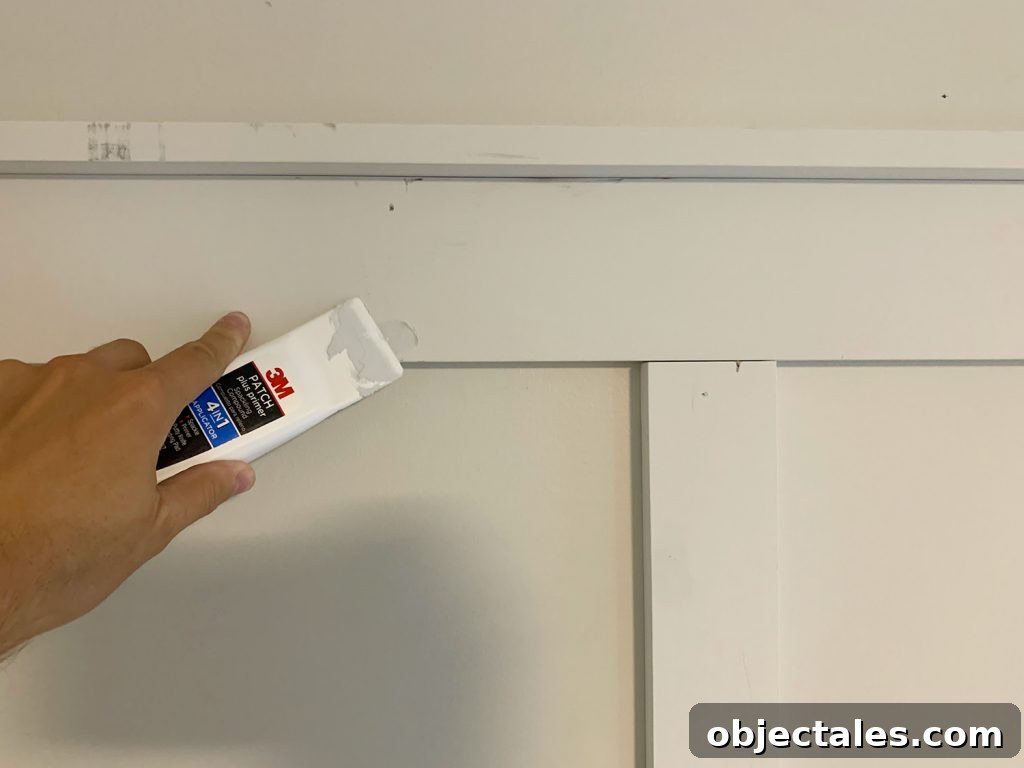

Fill nail holes and any small gaps with spackle or wood filler. A small multi-tool or a spackle knife speeds this step. Once the filler is dry, sand smooth with a high-grit sanding block and remove dust with a microfiber cloth before caulking and painting.
Step 9: Caulk Seams

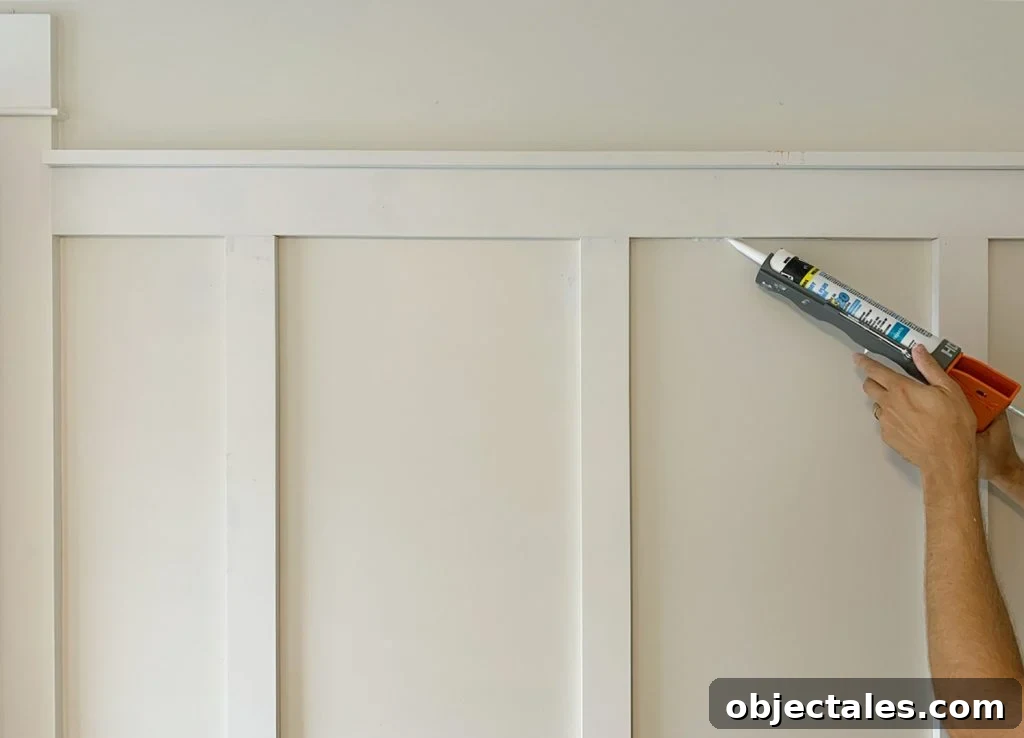

Apply a thin bead of caulk where boards meet the wall and at internal seams. Smooth the bead with a finger dipped in warm water for a clean finish. A small, angled cut on the caulk tube tip produces a neat line and reduces cleanup time. Caulking helps disguise slight wall bows and makes the treatment appear integrated with the wall surface.
Step 10: Prime & Paint

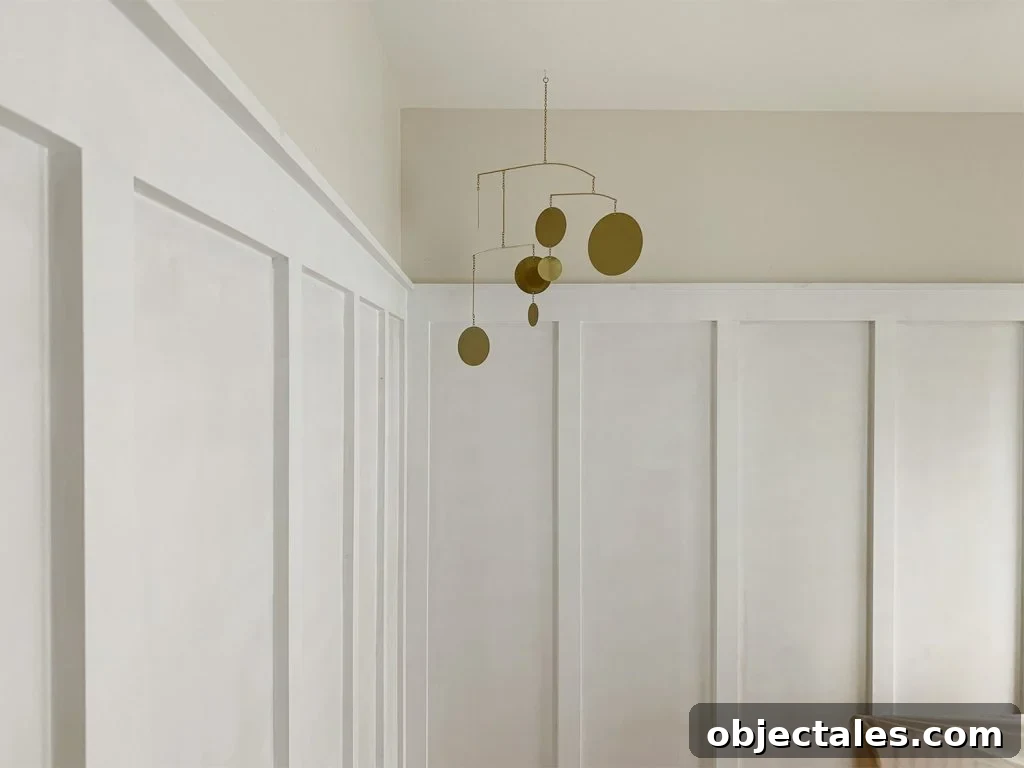

Prime any areas that were spackled or caulked to avoid visible sheen differences after painting. One light coat of primer over those repairs often prevents “flashing,” where repaired areas reflect light differently. After priming, apply your finish coat—semi-gloss trim paint is a classic choice for a crisp, durable look. We used a bright white for a beachy, clean aesthetic, but tone-on-tone or a bold color can also look great.

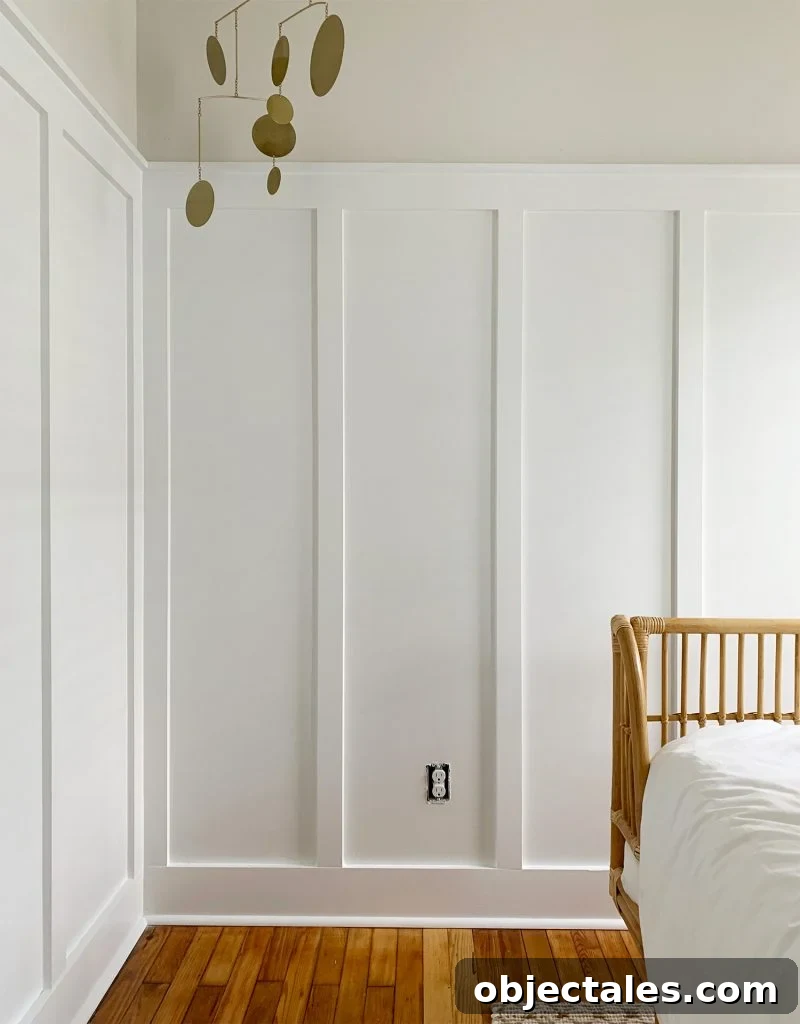

The Finished Board & Batten

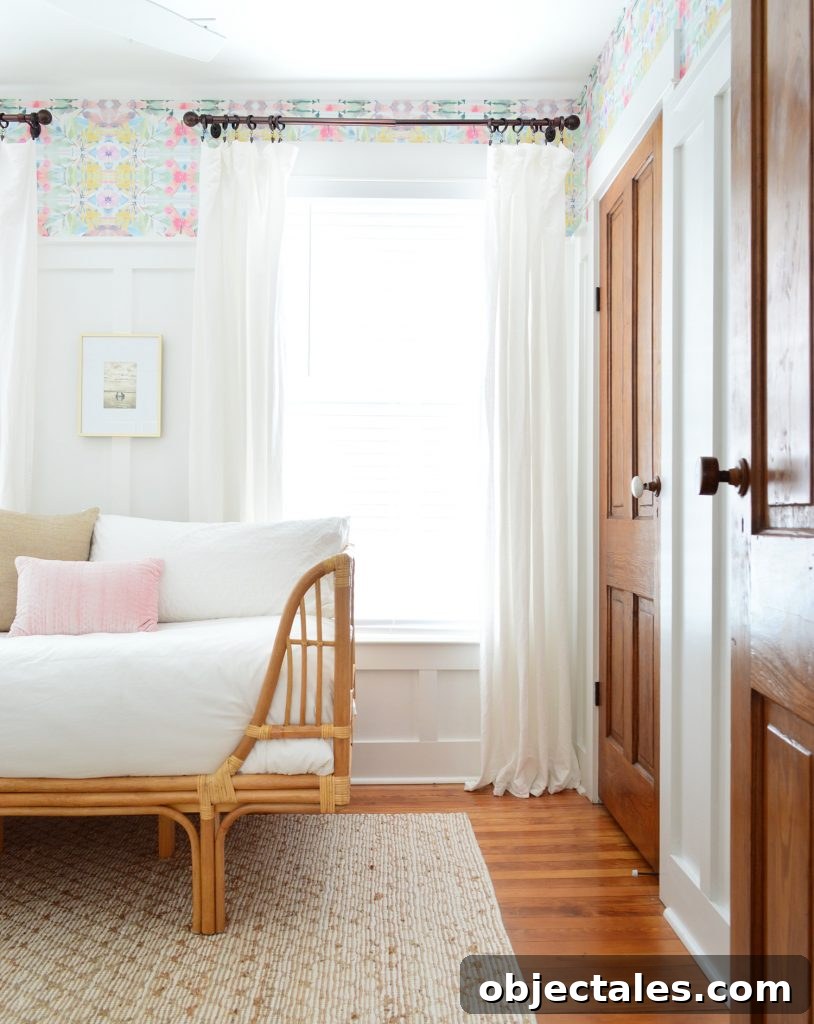

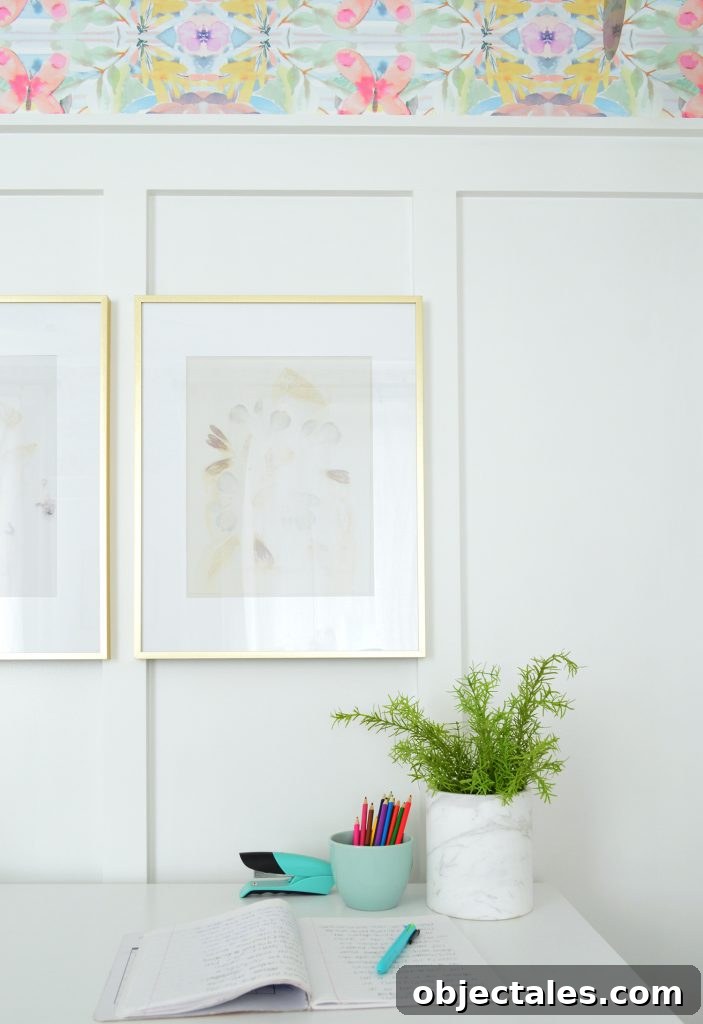

Once painted, the board and batten becomes a beautiful architectural feature that elevates the whole room. In our project we added peel-and-stick wallpaper above the rails for a bold finishing touch. The combination of molding and wallpaper is an easy way to make a guest bedroom feel intentionally designed and welcoming.
This project produces high visual impact for relatively low cost and time investment, and it’s very friendly to DIYers of different skill levels. If you want to experiment, mock up different heights and spacing with painter’s tape until the proportions feel right for your space.
Board & Batten FAQs
Is board & batten outdated?
Not at all. Board and batten is a timeless wall treatment. Keep it fresh by choosing crisp whites, modern neutrals, or on-trend hues and by adjusting batten proportions to suit contemporary spaces.
What materials work best?
Pre-primed pine, MDF, or lattice strips are common choices. Pre-primed materials save time. Avoid MDF in damp areas; use moisture-resistant materials or exterior-grade wood where appropriate.
Where does it look best?

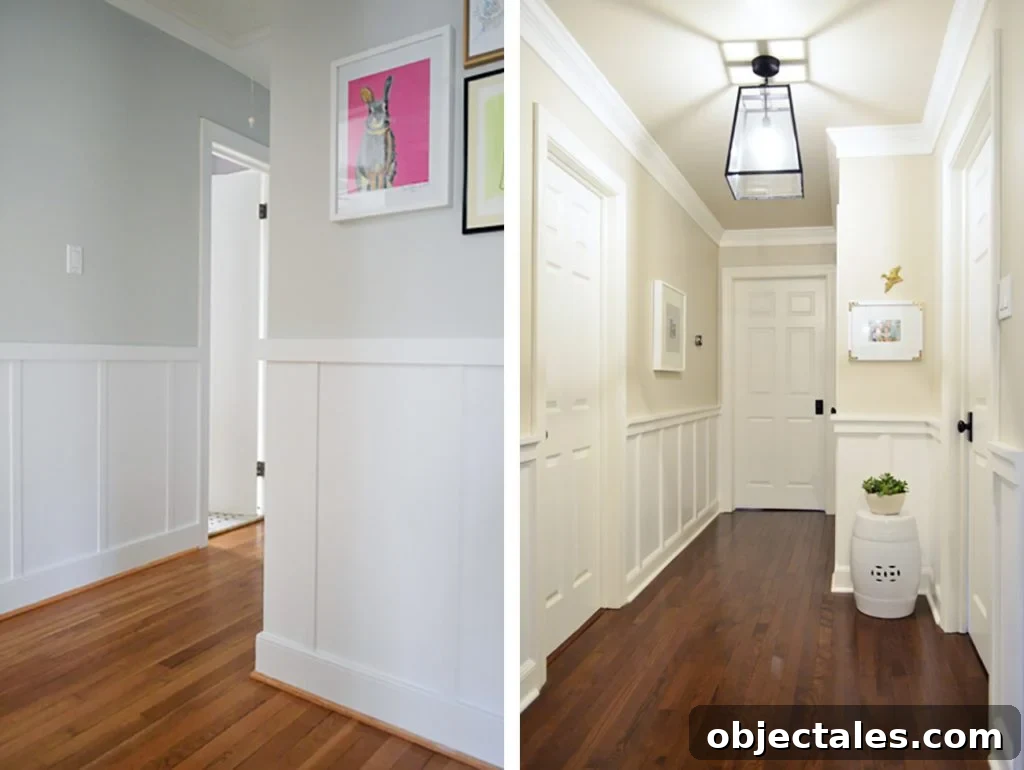

Board and batten works well in hallways, entryways, bedrooms, dining rooms, and living rooms. Aim for at least three repeating panels on a wall so the pattern reads intentional and balanced.
How high should it go?
Common placements are between half and two-thirds up the wall, but going higher often reads more proportionate. Test heights with painter’s tape and consider ceiling, doorway, and window lines when deciding.
How far apart should battens be?
Spacing between 12″ and 20″ center-to-center is typical. Larger rooms can tolerate wider spacing. Use painter’s tape to test and adjust so corners and openings don’t create awkward small pieces.
Can you install on textured walls?
Yes, but if the wall texture is pronounced, install thin, smooth boards over the drywall first to create a flat surface for battens. Thin MDF panels screwed to studs work well for this purpose.
More DIY Wall Treatments
If you enjoyed this project, consider trying other wall treatments like budget-friendly shiplap panels, decorative box molding, colorful planked walls, or removable wallpaper murals to personalize your space and add architectural interest.
