Deck Progress: Laying the Boards and Installing the Picture Frame Edge

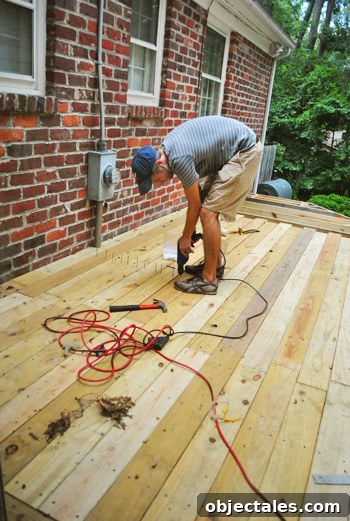

When we last updated our deck project, I was in the thick of it—drilling screws across the middle of the deck and gradually turning a grid of joists into usable decking. Since then I’ve kept at it, steadily attaching more boards until the center of the deck was solid and safe to walk on. It felt great to go from an expanse of gaps and potential trips to a continuous surface.

img 50078 1

After completing the middle section, I continued attaching boards toward the outer edges. The process is mostly the same—measure, place, and fasten—but the edge of the deck required a bit more planning because we chose to add a mitered “picture frame” border. That detail makes the deck look more finished and professional, but it also demands careful measuring and cutting.

img 50078 2

One tip I picked up from tutorials is to leave the boards a touch long when you reach an open edge. Instead of measuring and cutting each board individually before installing, place them all and then cut them flush from the top with a circular saw. That approach produces a cleaner, more consistent edge than trying to individually measure and trim every board.

img 50078 3

Once the boards were attached and I had my rough edge in place, I used a pre-mitered frame piece as a straightedge to mark a clear cut line with a pen. That gave me a reliable guide for the circular saw and helped ensure the frame pieces would meet neatly at the corners.

img 50078 4

Before cutting, I set the depth on the circular saw to 1 3/4″ so the blade would only cut through the deck boards and not into the girders beneath. With the depth set and the line marked, I made the cut along the edge, pausing only briefly to take photos and then finishing the run. I stopped just before the last board, since that piece was already mitered as part of the frame.

img 50078 5

After sanding the cut edges smooth, I dropped the end piece into place. It fit cleanly and looked sharp once fastened.

img 50078 6

The straight end was straightforward, but the next section required angled cuts to form the picture frame corners. My geometry was a little rusty, so I practiced on scrap wood until I dialed in the correct angle where the two frame boards would meet. Once I was satisfied, I marked the cut with a bold pen line and cut the pieces to size.

img 50078 7

Here’s the clean edge after cutting—ready for sanding and fastening. There’s always a bit of sawdust, but the result was a neat, crisp line where the frame pieces meet the deck boards.

img 50078 8

Once everything was screwed into place, the final frame looked great. I’m happy I figured it out without ruining any boards—test scraps took one for the team during the trial-and-error stage.

img 50078 9

Here’s the finished end after sanding and fastening. Choosing to add the picture frame border was worth the extra effort; that small detail significantly elevates the finished appearance and gives the deck a professional touch.

img 50078 12

With all the deck boards now installed, it finally feels like a real deck. We arranged the decking with two subtle seam details that will frame the dining area. We plan to center the table between those seams just as Sherry sketched in the rendering. Once we seal the boards and add furniture, those seams should become a built-in design feature that complements the layout.

img 50078 13

img 50078 14

The next steps—railing and stairs—are already on my mind. They’ll require precise measurements and careful execution, and I suspect building inspectors will pay particular attention to those elements. It’s the next big challenge in this project, so stay tuned.

Anyone else tackle a DIY project recently and come away feeling a little heroic? Even small victories count.

Psst—If you want to follow the whole deck journey, here’s where we shared our plans, removed old plantings and the balcony, chose materials, documented the first day of building, dug post holes, handled inspection setbacks, set posts, installed joists, prepped for decking, and continued laying boards while shaping the design and mood for the space.
