How to Build Floating Kitchen Shelves

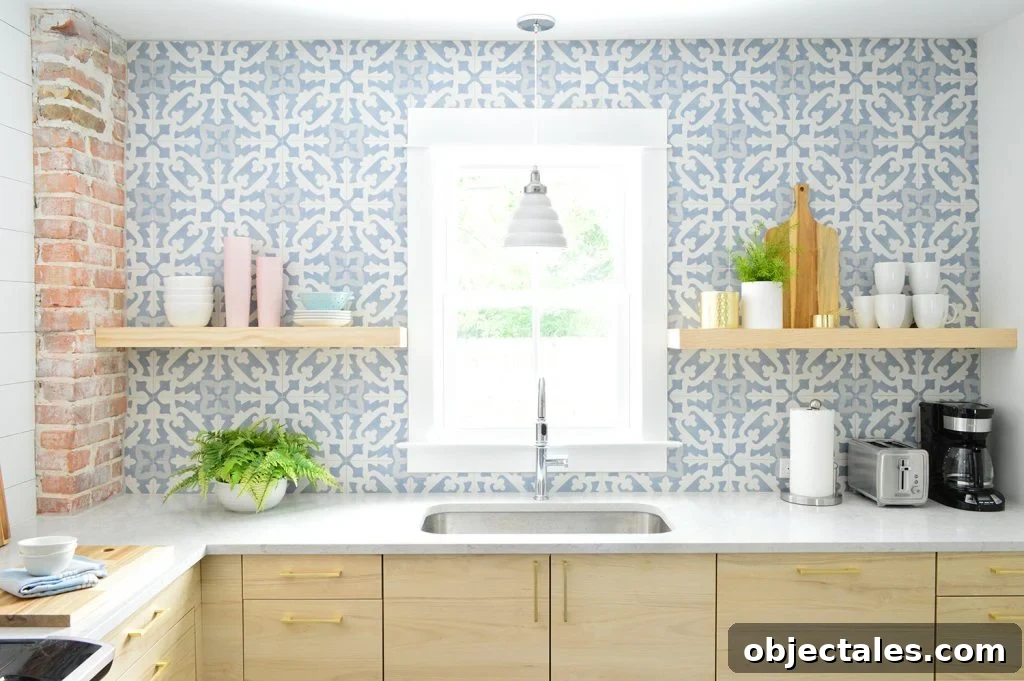

We love floating shelves in kitchens: they’re functional, stylish, and open up the space around cabinets. We’ve used versions of them in almost every kitchen we’ve remodeled, and our favorites are the DIY floating shelves in the duplex kitchens. Below is a clear, practical guide to building your own custom floating shelves so they fit your space and finish perfectly.

Tools & Materials for Floating Kitchen Shelves

These kitchen shelves are a slightly chunkier, stained version of a narrow floating shelf built for a bonus room. The build method is the same: create a sturdy internal bracket that screws to studs, then hide that bracket with plywood and trim. Below is a concise shopping and tool list to prepare for your project; exact quantities depend on the size and number of shelves you plan to install.
- 1×2″ pine boards (support bracket)
- 1×3″ pine boards (facing / trim)
- 1/2″ plywood (shelf top)
- 1/4″ plywood (shelf bottom)
- Miter saw
- Table saw or circular saw
- Power drill / driver
- Nail gun or finish nails and hammer
- Long level
- Measuring tape
- Stud finder
- Clamps
- 2 1/2″ structural screws for attaching bracket to studs
- Wood glue
- Pocket hole jig (optional)
- Diamond tile drill bit (if installing through a tiled backsplash)
Step 1: Build the Support Bracket

The internal support bracket is what makes these shelves strong. Build it from 1×2″ pine: one long back piece that runs along the wall, with shorter spokes that extend outward to support the shelf surface. Place a spoke at each end and roughly every 8″ in between for consistent support, avoiding locations where you’ll drive screws into studs.

Cut the spokes to the shelf depth minus 1.5″ — that gap accounts for the back board and the front face you’ll add later. Join the spokes to the back piece with pocket holes, screws from the back, or wood glue and nails. If you want a chunkier finished shelf, use 1×3″ for the bracket instead; our 1×2″ bracket plus plywood produced about a 2.75″ finished thickness.

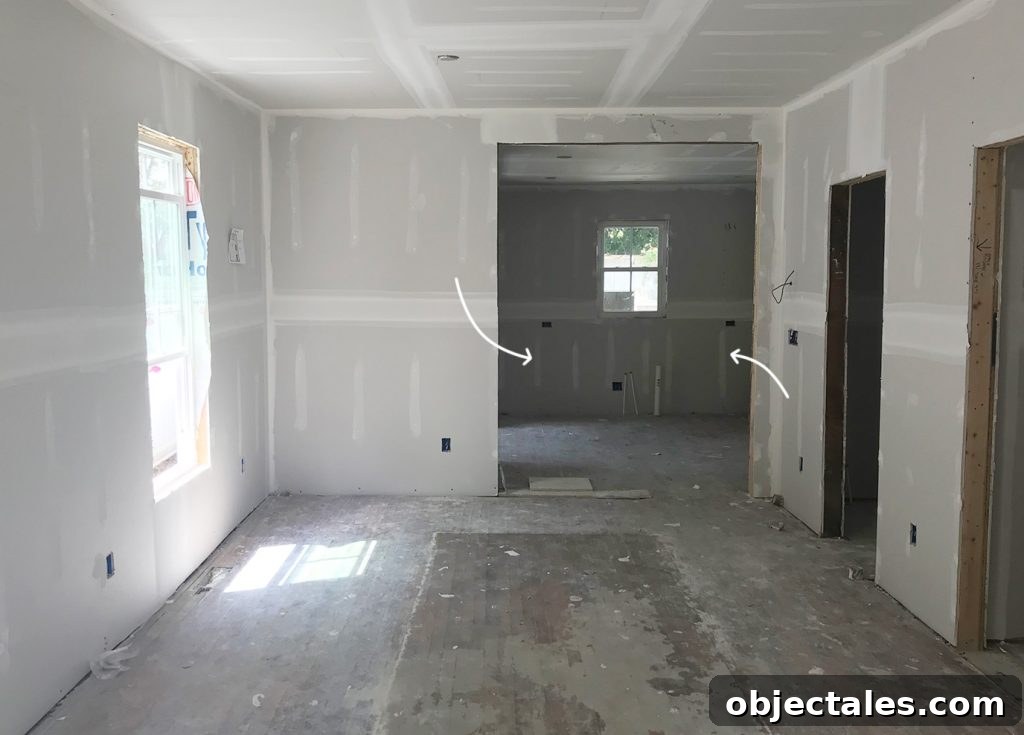

Step 2: Find Your Studs

For the strongest mount, anchor the bracket into wall studs. A reliable stud finder helps, though accuracy can be reduced over tile. If you tiled after locating studs, mark and record their positions beforehand. Other clues include outlet locations (often mounted to a stud), cabinet screw locations, and any renovation photos that show drywall screw lines. In a pinch you can drill pilot holes until you hit wood, but that’s harder if you’re drilling through tile, so do your prep carefully.

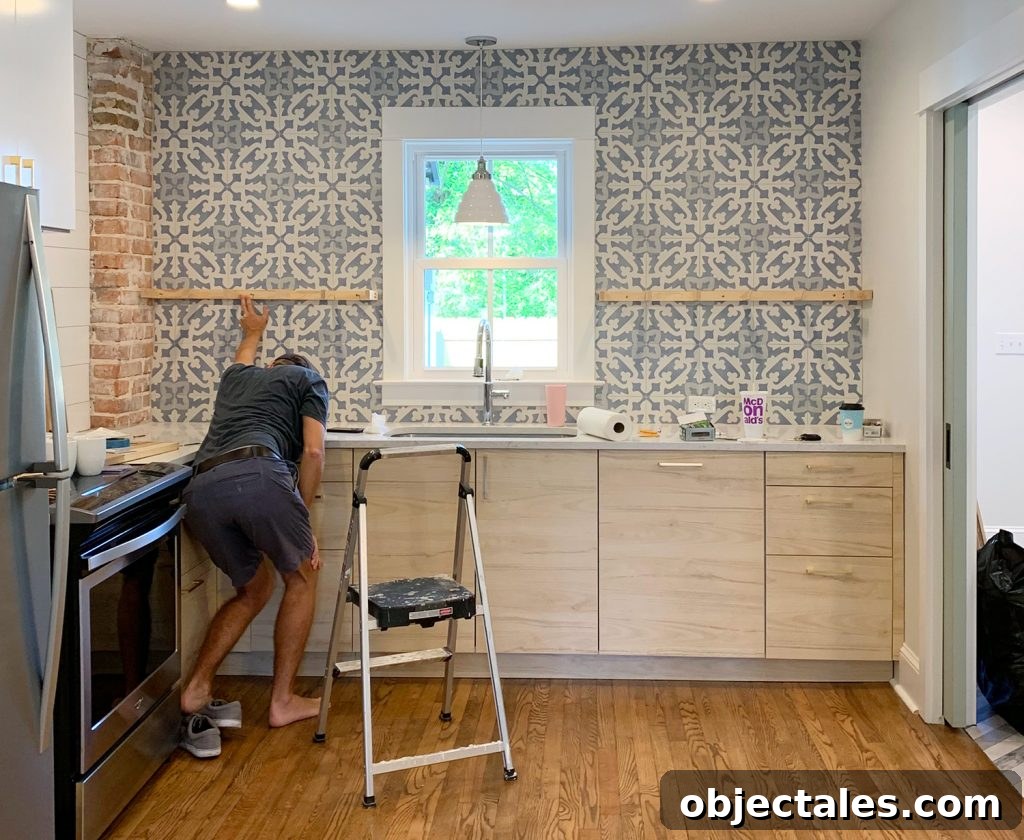

Step 3: Mark Your Drilling Locations

Take time to set exact shelf height and verify level before drilling. A common shelf height above the counter is around 18″, but choose what works for your layout. Temporarily hold the bracket in place, mark the stud centers, and use painter’s tape on tile to protect the surface. With a small drill bit, slowly make pilot holes through the bracket until you touch the tile, transferring precise hole locations to the backsplash without committing to the full hole yet.

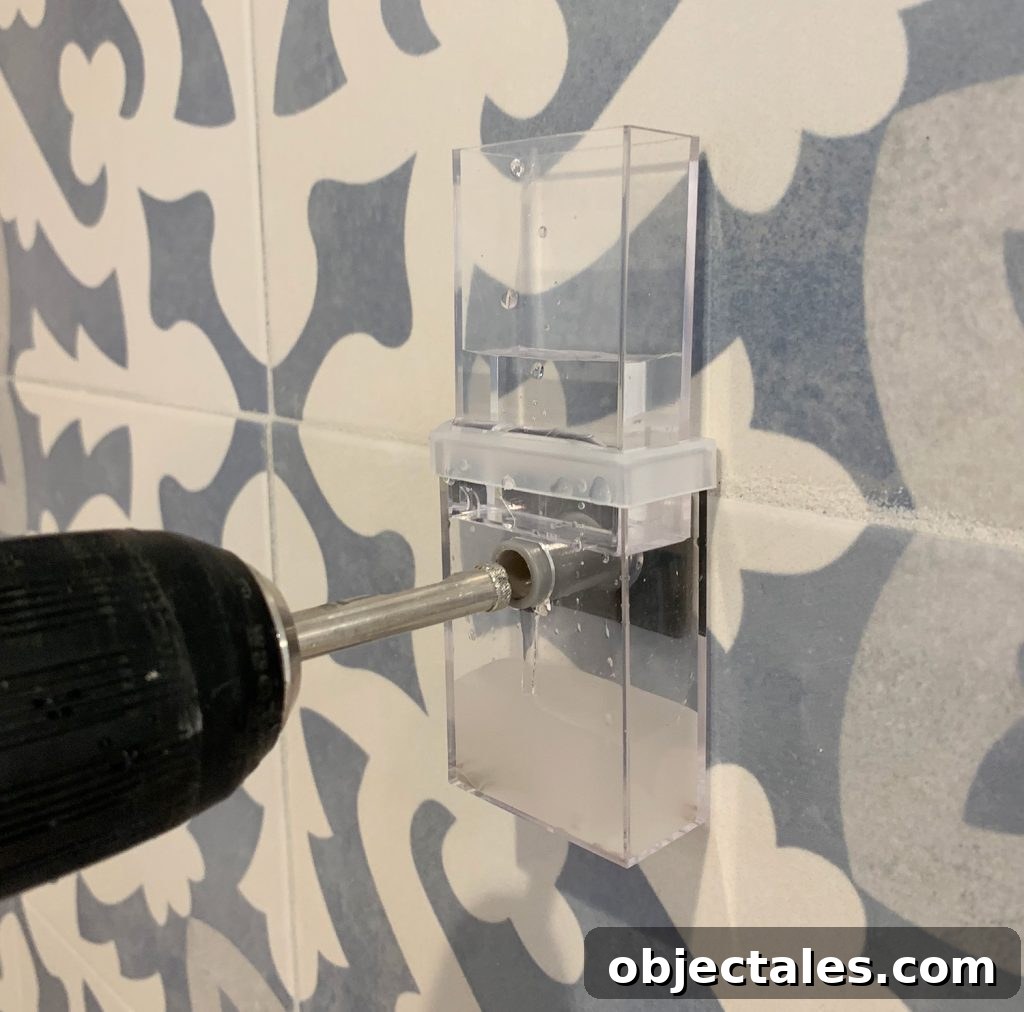

Step 4: Drill Through Your Tile

Drilling tile safely requires patience, the right bits, and steady cooling. Use a diamond tile drill bit and keep water on the bit to reduce heat and prevent cracking. Work slowly and steadily — rushing increases the chance of chipping. Because this step is delicate, double-check all marks and levels before committing to holes through tile.

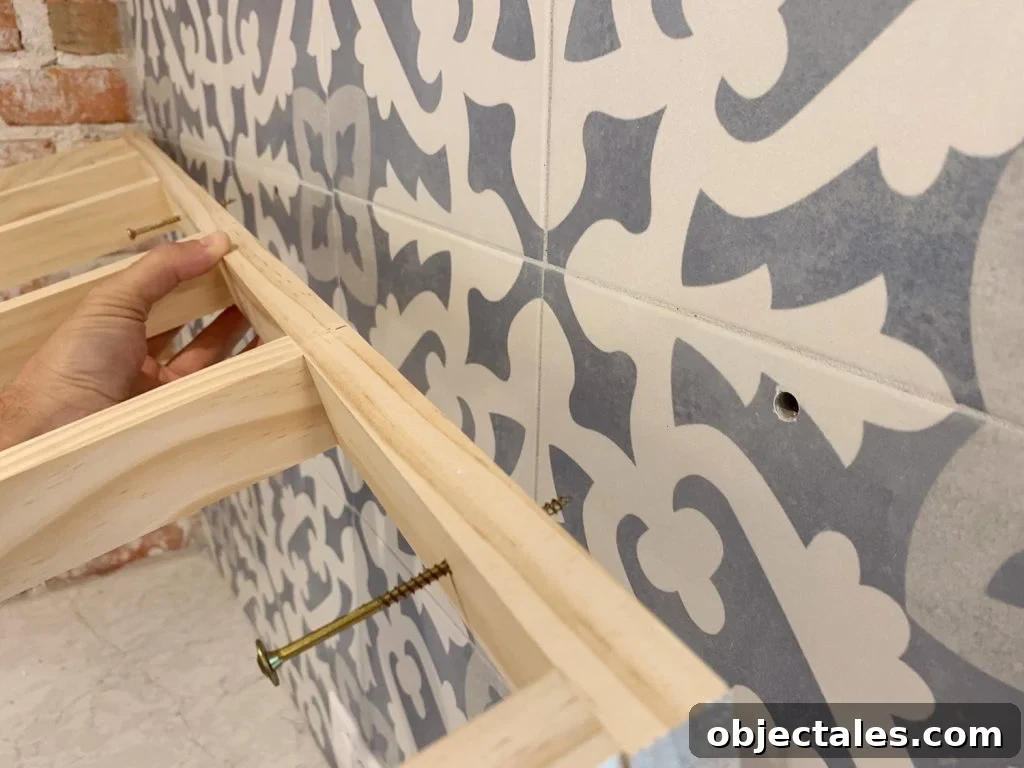

Step 5: Secure Your Support Bracket

With pilot holes in place, fasten the bracket to studs using heavy-duty structural screws. Pre-drilling holes in the bracket can make alignment easier and prevent splitting. Check continuously with a level so your completed shelf sits perfectly horizontal.

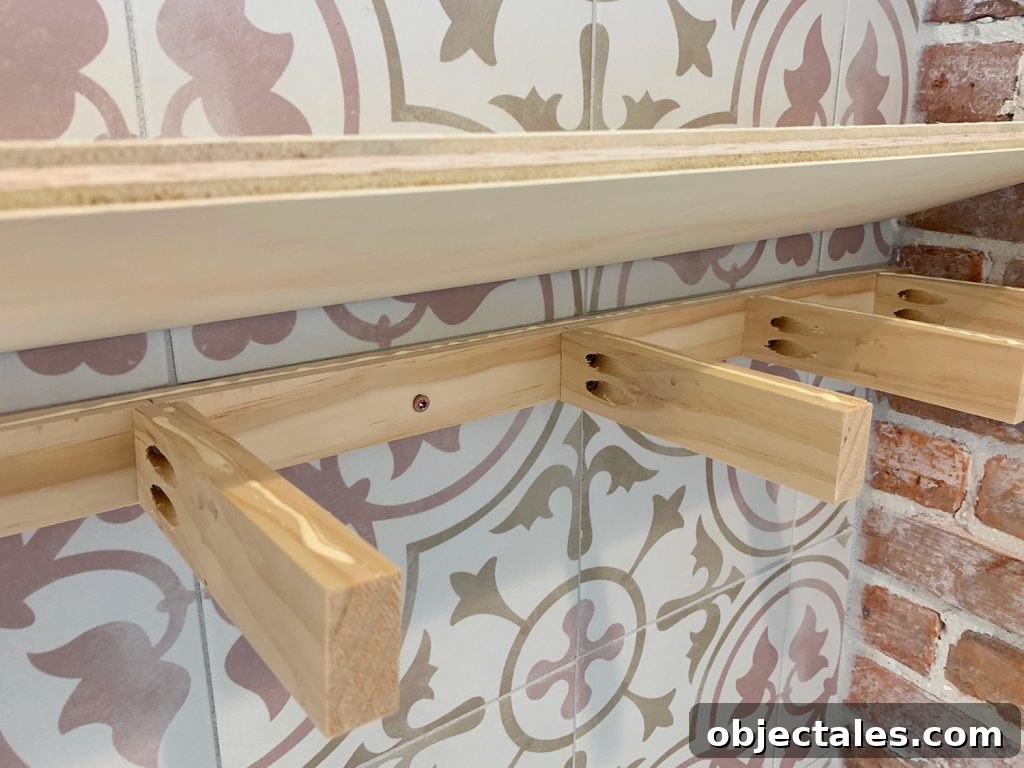

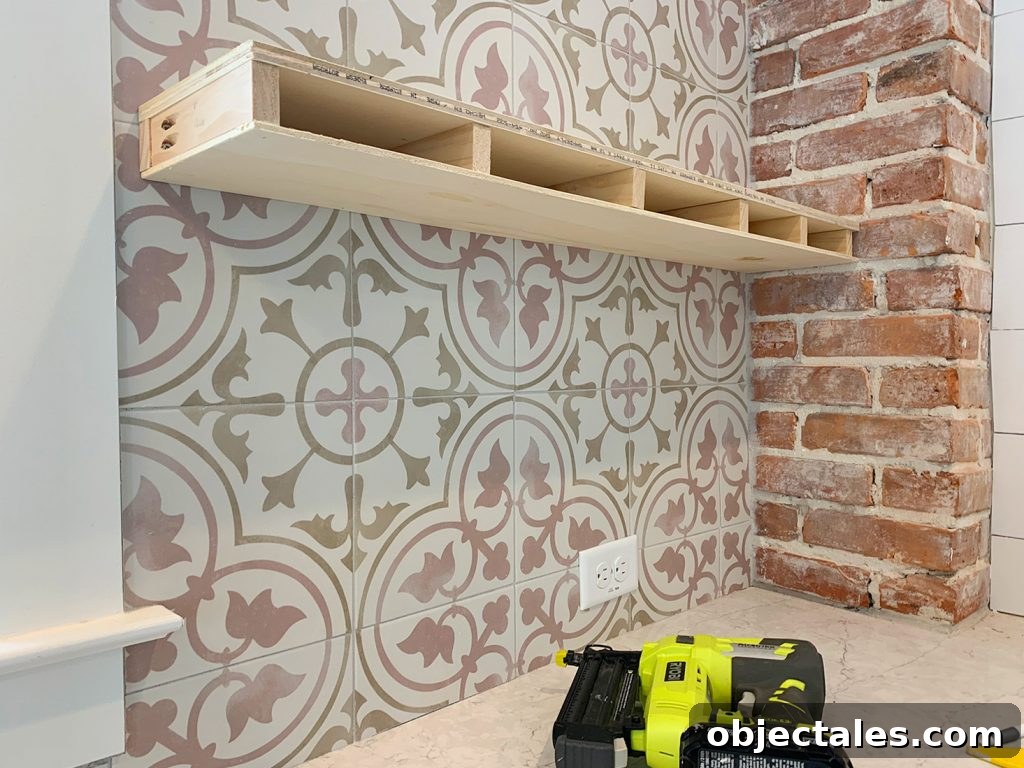

Step 6: Nail In Your Shelf Top & Bottom

Attach a 1/2″ plywood top that spans the full bracket depth and width. Use plenty of wood glue and secure it with finish nails. Then add a 1/4″ plywood bottom to close the underside — this piece doesn’t carry the load and can be thinner. Clamps help hold everything square while nailing. This sandwich of plywood keeps the finished thickness close to a standard 1×3″ look.

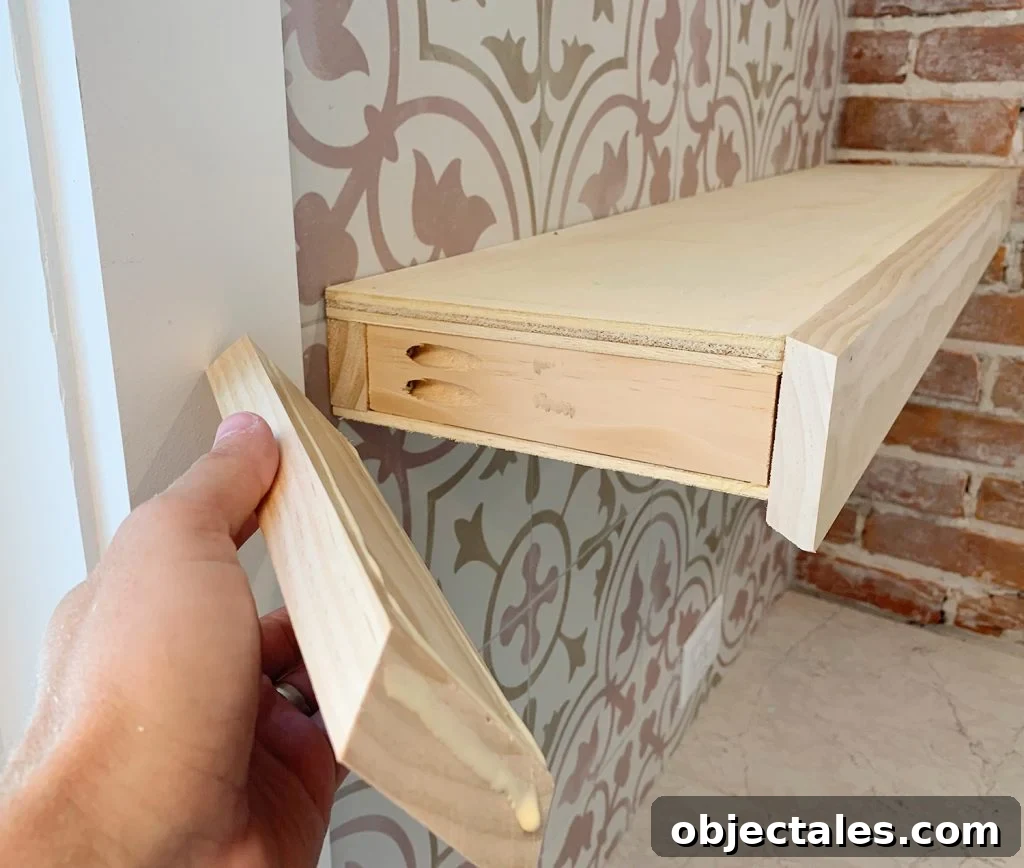

Step 7: Nail On Face Pieces

Finish the exposed shelf edges with 1×3″ pine face boards. Glue and nail the front and side pieces to conceal the bracket and plywood seams. Miter the corners for a polished look, or butt-join if you prefer. If you have a table saw, rip the face pieces to the exact depth so there’s no visible lip; otherwise a small bottom or top lip is acceptable and purely aesthetic.

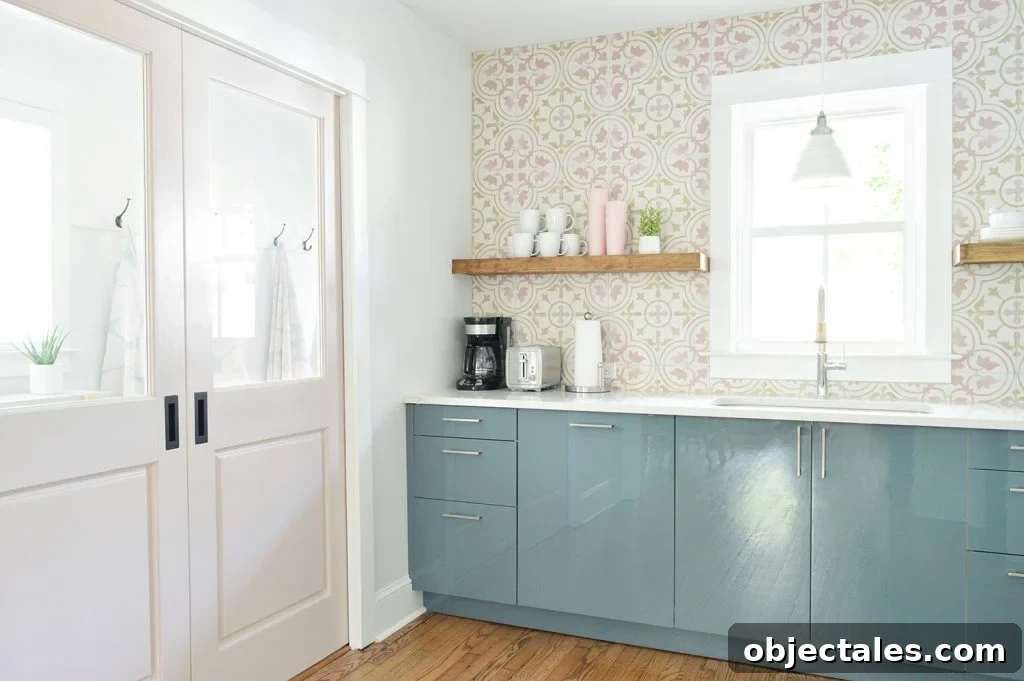

Step 8: Add Paint, Stain, or Sealer

Once assembled, finish the shelves to suit your kitchen. Stain is great for matching wood tones; we used a medium oak stain on one side of the duplex to coordinate with flooring. On another side we applied a clear, water-based sealer to protect against moisture and stains while preserving the natural grain. If you plan to paint, consider pre-primed 1×3 boards for clean edges and use MDF for shelf surfaces if you want an ultra-smooth painted finish.

More DIY Shelf Ideas
If you enjoy shelving projects, compile a list of ideas before you start—open display shelves, enclosed cubbies, staggered floating runs, and window-niche built-ins are all great variations. Experiment with different wood species, finishes, and thicknesses to create the look and function you want.
