When we needed heavy-duty shelving for our new shed, we followed a clear, reliable tutorial from Ana White. These shelves hold heavy items—power tools, paint cans and bulky gear—and are remarkably simple to build, even for beginners. The design is sturdy, adaptable, and fast to assemble, making it a great option for garage or shed storage.
We liked this method so much we repeated it in our beach-house shed and again in the smaller shed at our current house. Compared with many store-bought shelving units, these built-in shelves are stronger, less bulky, and much more customizable. Long shelves with generous spacing create flexible storage and easy access to large items.
They adapt to almost any wall size and are especially straightforward to install when wall studs are exposed, allowing you to securely fasten the supports.
Tools & Materials Needed
The materials list is short, which is another reason this project is ideal for anyone who wants quick, durable shelving.
- 2×4 lumber
- 1/2″ plywood, MDF, or scrap wood for shelf tops
- Miter saw
- Table saw or circular saw
- Pocket hole jig
- Tape measure
- Long level
- Nail gun
- Drill and wood screws
- Stud finder (optional)
How much lumber you need depends on the wall length and the number of shelves. We typically build from the floor up to about 18″ below the ceiling to leave space for taller items on the top shelf.
DIY Garage Shelves Tutorial
Below is an overview of the simple steps to build these heavy-duty shelves.
- Step 1: Cut pairs of 2×4 shelf supports
- Step 2: Mount one 2×4 from each pair to the wall
- Step 3: Temporarily fasten the front 2×4 to each pair
- Step 4: Install vertical 2×4 supports
- Step 5: Remove the temporary screws
- Step 6: Add side pieces to connect front and back supports
- Step 7: Attach the plywood tops
This approach removes much of the guesswork when aligning shelves and ensures a solid, level result.
Step 1: Cut Pairs Of 2×4″ Shelf Supports

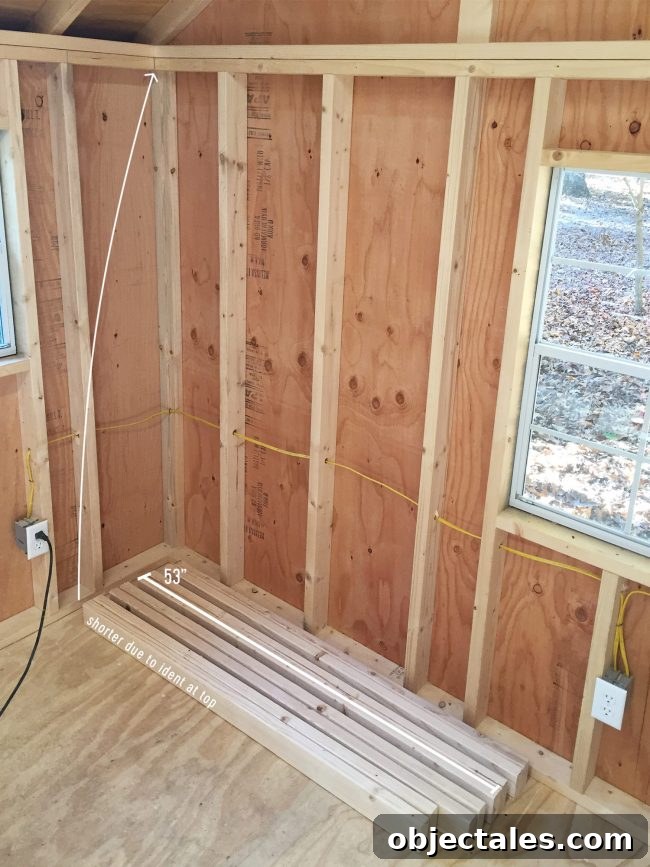

We built our shelving on the same wall as a scrap wood organizer, cutting four matching pairs of 2x4s to span from corner to window—53″ in our setup. Each pair forms the bottom of a shelf: one board fastened to the wall and the other along the shelf front.
Step 2: Hang One 2×4″ From Each Pair

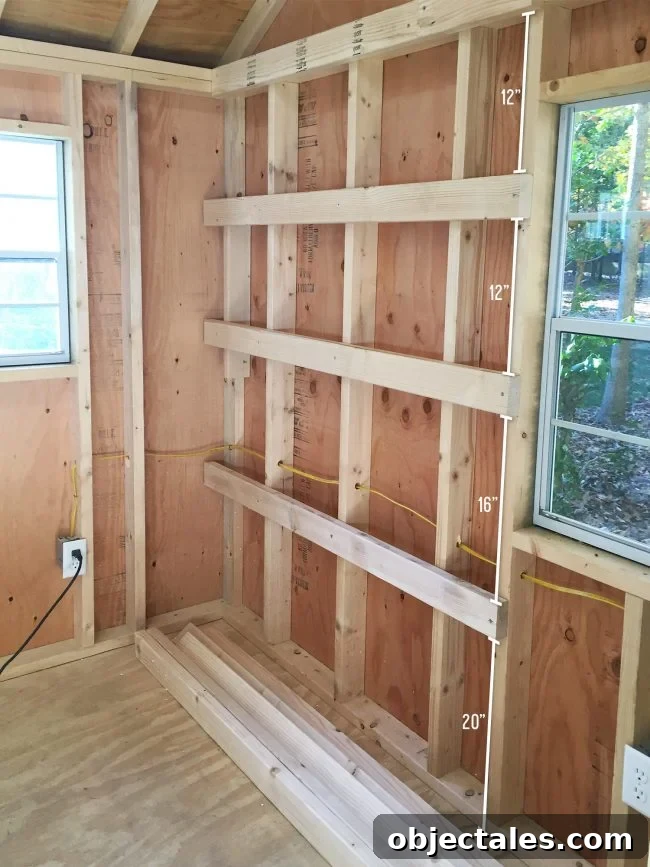

Using a level and tape measure, secure one board from each pair into the wall studs with long wood screws. These back boards will support the shelves. Spacing is up to you—customize it to fit plastic storage totes, paint cans, or other items. Make the bottom shelf taller to store large or heavy items without lifting them too high, and keep enough clearance at the top for taller objects or tools.
On sloped ceilings or tricky walls, measure carefully so the top shelf clears any obstructions—this creates a perfect spot for larger tools like a wet saw.
Step 3: Screw The Other 2×4″ Into The First (Temporarily)

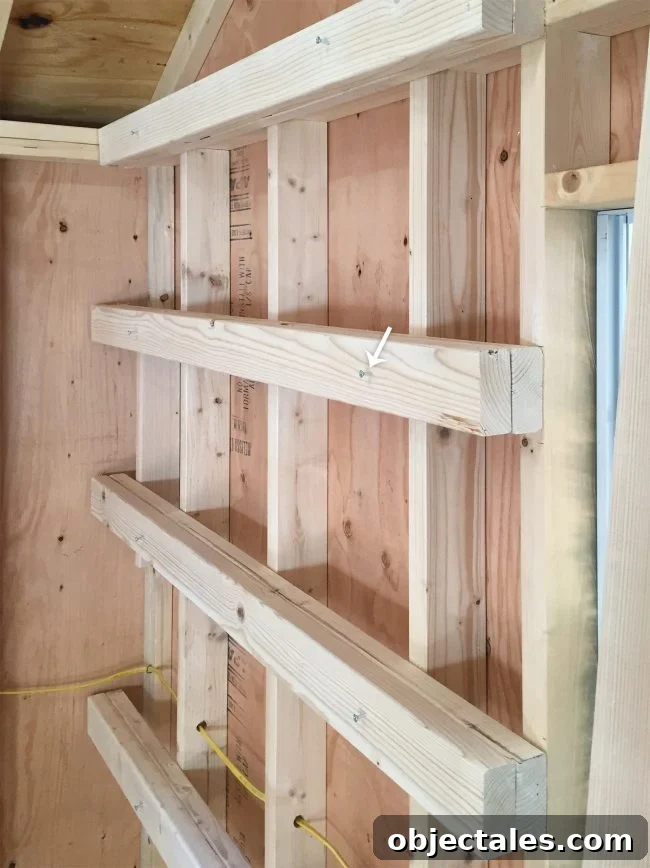

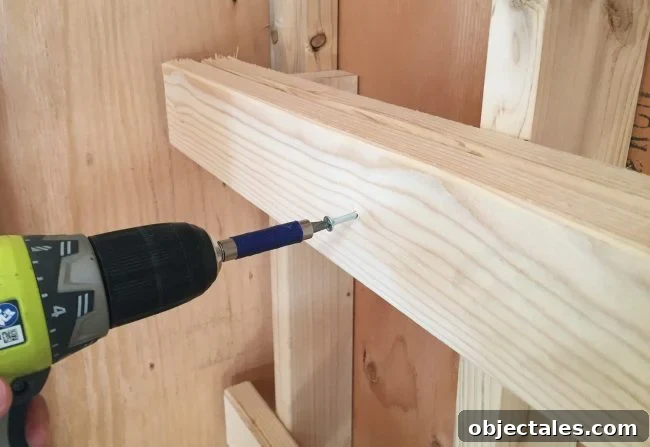

Loosely attach the matching front 2×4 directly over each back board, lining everything up precisely. Use two screws per board but don’t drive them fully in—just enough to hold the pieces together temporarily. This creates a front panel you can later remove for easier access during assembly.
Step 4: Attach 2×4″ Vertical Supports

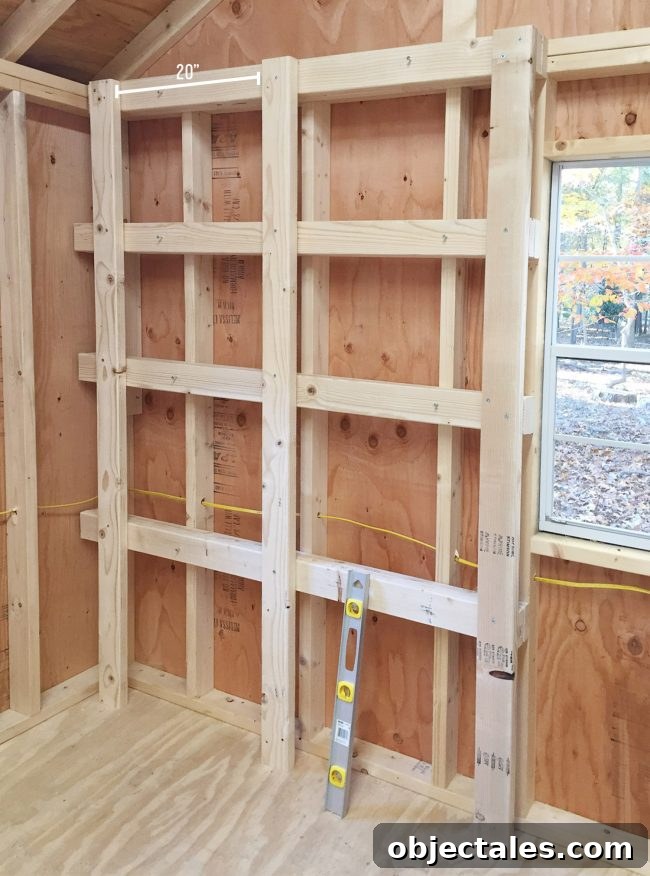

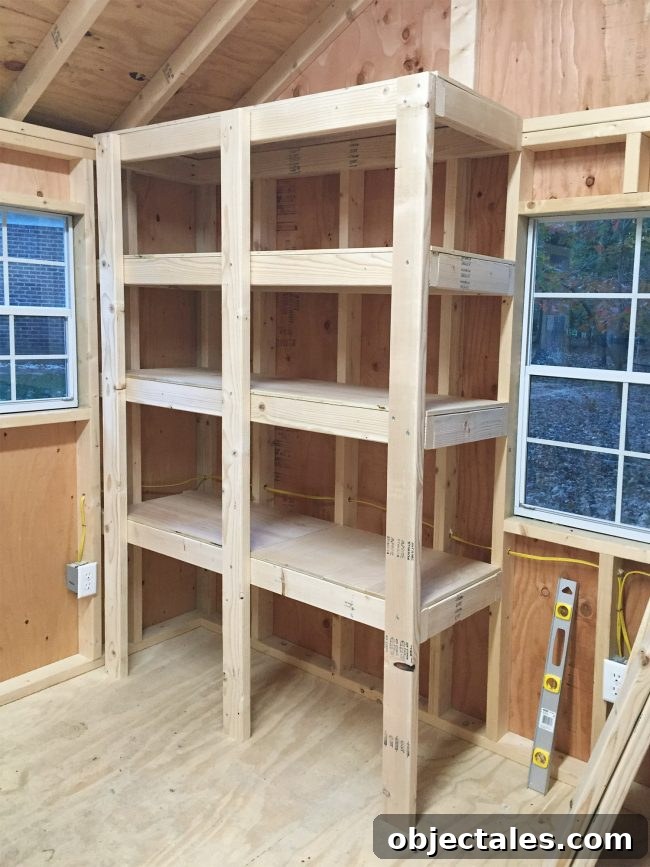

Cut vertical 2×4 posts to rest on the floor and reach just below the top board. Fasten them securely to the outer horizontal pieces with screws, checking plumb with a level. We started with three posts, then removed the middle one later when the shelves proved stable—adjust the number of posts to match your load and span.
Step 5: Remove Your Temporary Screws

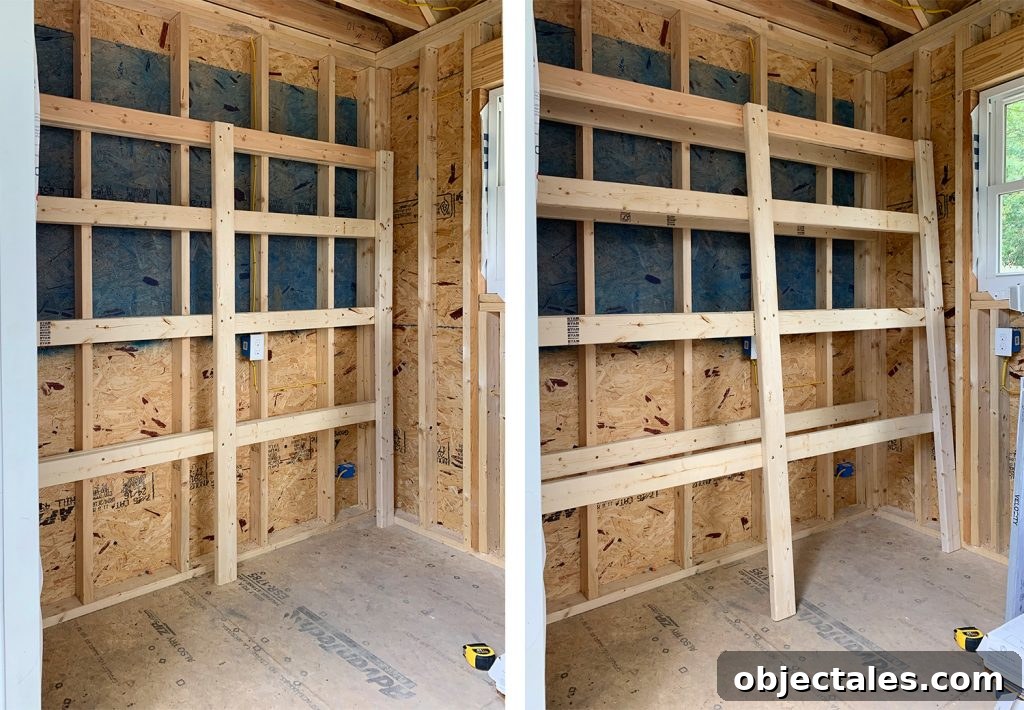

Remove the temporary screws and pull the front portion away from the wall; the paired supports will separate cleanly. This makes it easy to finish assembling the frame on the bench or floor before reinstalling the front section.
By cloning the back frame, everything lines up precisely when you reattach the front piece.
Step 6: Add Side Pieces

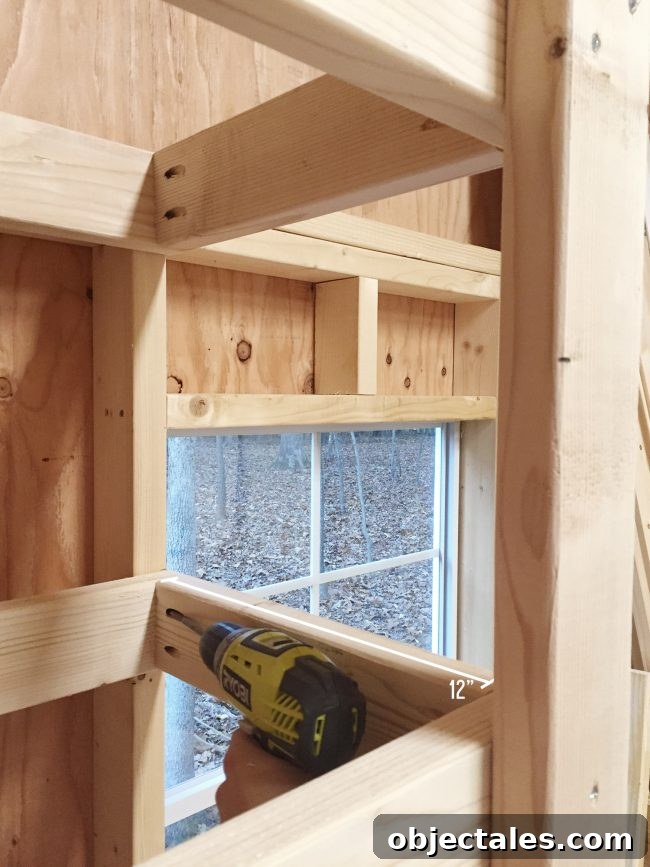

Cut side cleats (we cut 12″ pieces) and drill pocket holes so they can join the front and back horizontals. With these, the shelf depth becomes roughly 15″, which worked for our space. Adjust depth to your needs, but avoid going much deeper than 18″ unless you use thicker plywood or add extra cross supports to prevent sagging.

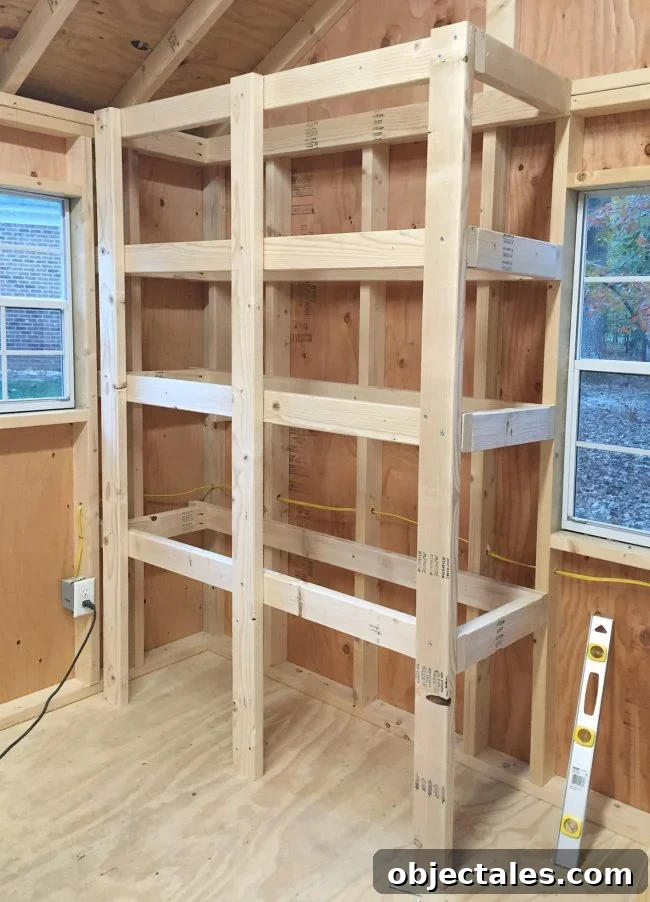

Once the side pieces are installed, the shelf frame will be rigid and ready for tops.
Step 7: Nail In Shelf Tops
Attach 1/2″ plywood shelf tops with nails or glue. Cut the panels to size with a table saw or circular saw; many home centers will cut plywood to size if you prefer. After adding the tops we discovered the unit was extremely steady and removed the center post to make loading larger items easier.

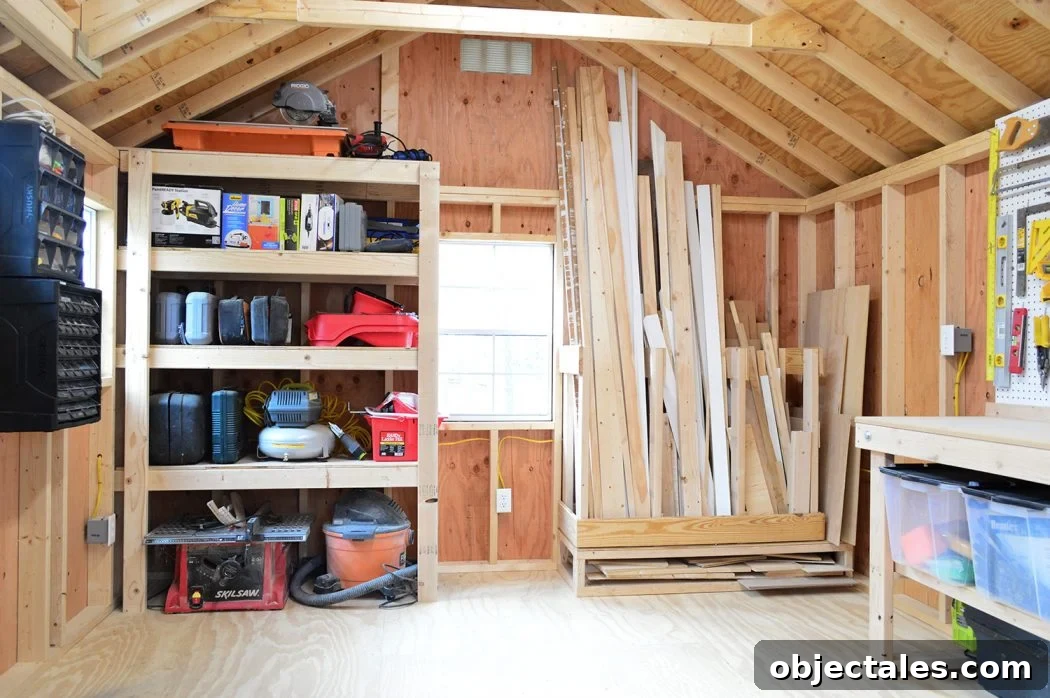

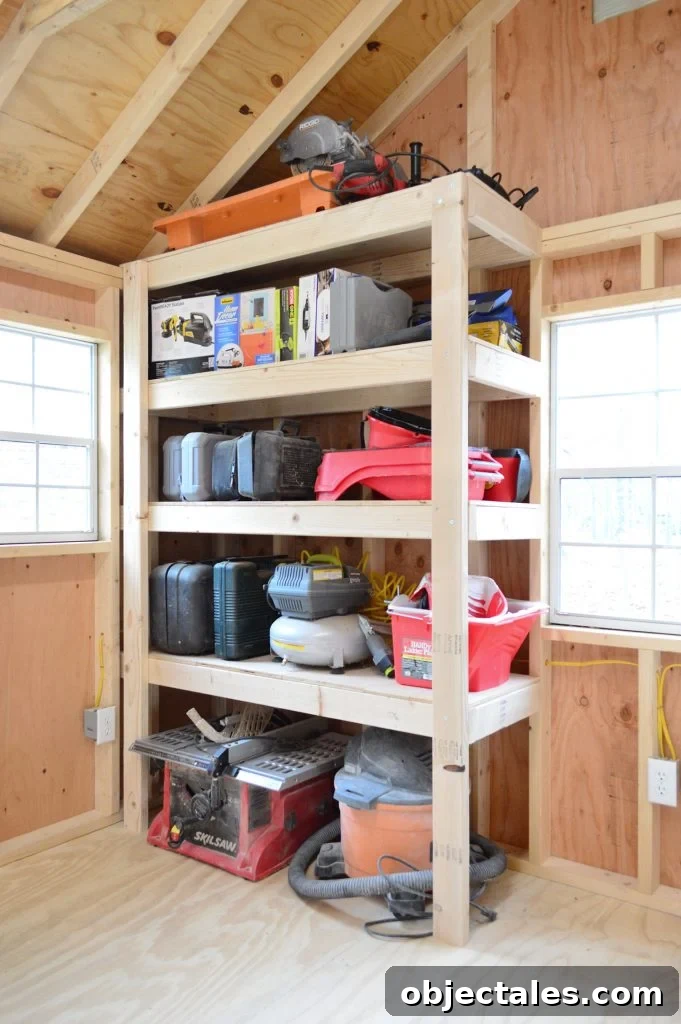

The finished shelves hold boxed tools, painting supplies, saws, and other heavy gear without a hint of flex. They’re so sturdy they handle heavy loads with confidence.

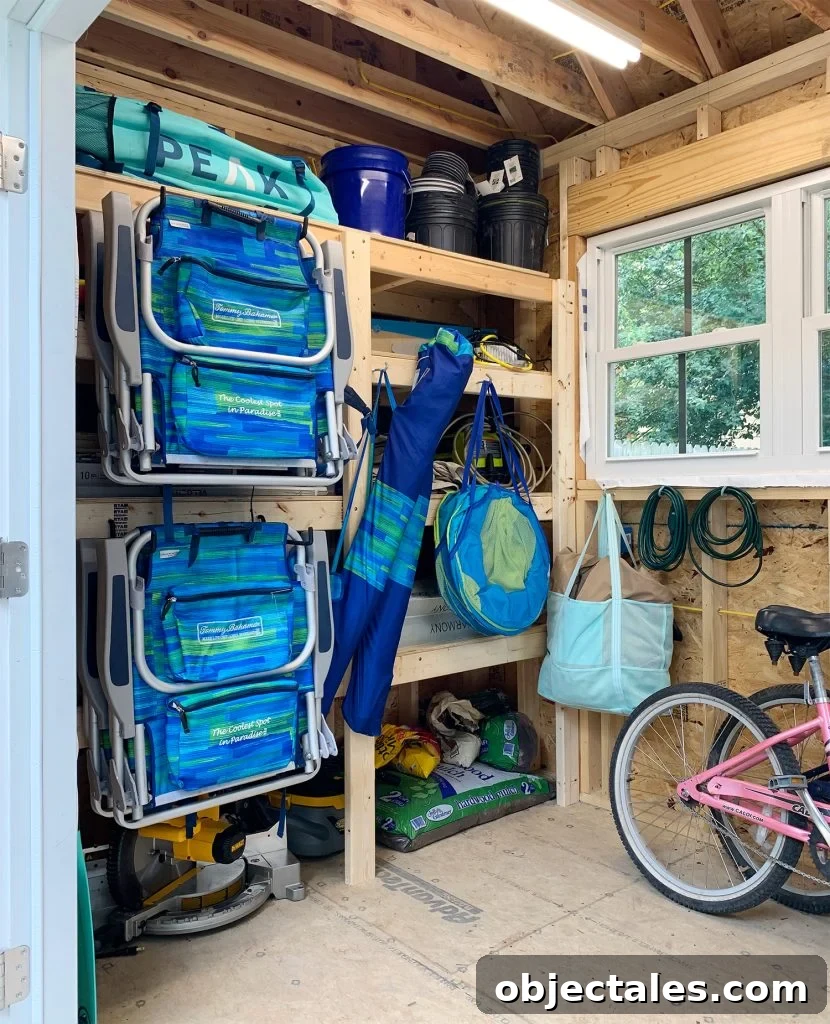

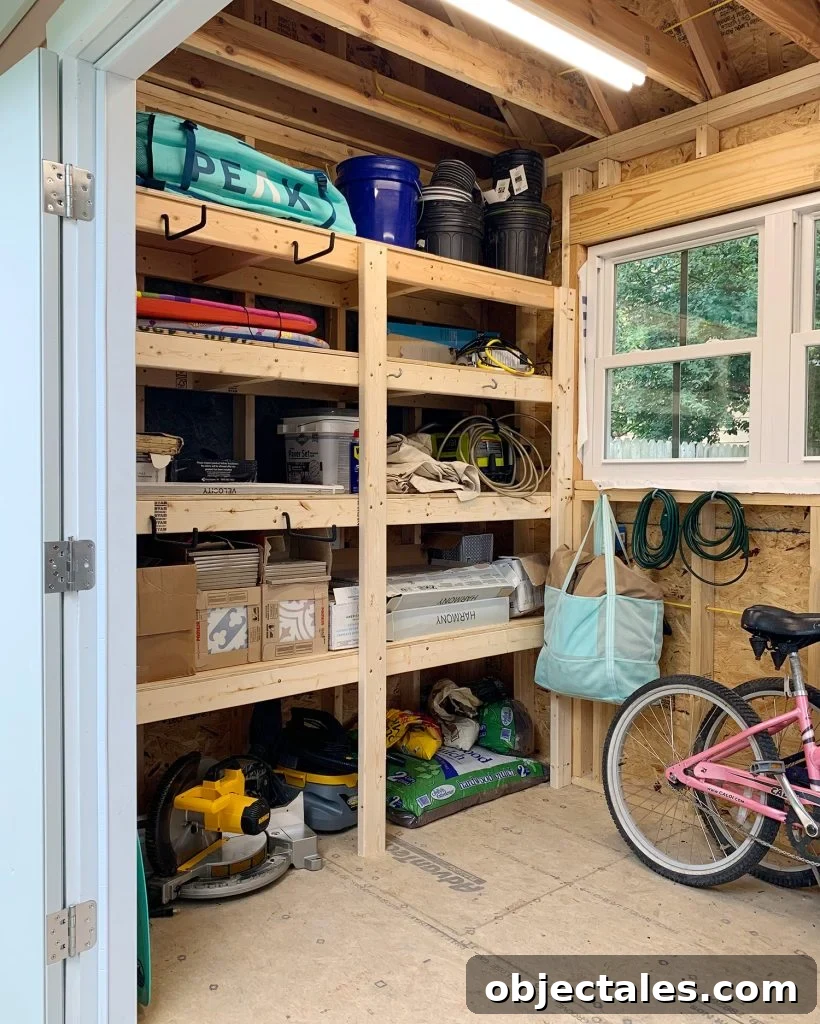

In our beach-house shed we customized the same design to store spare tile and paint that isn’t used often. We also added hooks to the front to hang chairs and umbrellas, which keeps items organized and easy to grab.
This simple, effective shelving method provides durable, customizable storage for garages, sheds, and workshops. With basic tools and a handful of materials, you can build long-lasting shelves that maximize vertical space and keep heavy items secure and accessible.
